MTV

High-performance vertical machining center with high-torque spindle

  • Equipped with BT50 high-torque spindle. Demonstrates high productivity from heavy-duty cutting of long and heavy workpieces to machining of difficult-to-machine materials
  • Highly rigid machine structure with back and forth column and horizontal table travel system
  • Tables with a wide machining area and outstanding load capacity
  • Equipped with touch panel CNC system MAZATROL SmoothG

MTV-515/40

  • Y-axis Stroke
    510 mm
  • Tool Shank
    BT50
  • Standard Max. spindle speed
    6000 min-1 (rpm)
  • Table Size
    1300 mm × 550 mm
Specifications

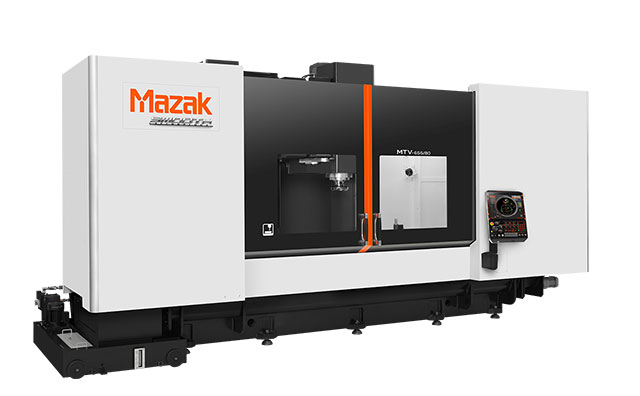

MTV-655/60

  • Y-axis Stroke
    650 mm
  • Tool Shank
    BT50
  • Standard Max. spindle speed
    6000 min-1 (rpm)
  • Table Size
    1740 mm × 650 mm
Specifications

MTV-655/80

  • Y-axis Stroke
    650 mm
  • Tool Shank
    BT50
  • Standard Max. spindle speed
    6000 min-1 (rpm)
  • Table Size
    2240 mm × 650 mm
Specifications

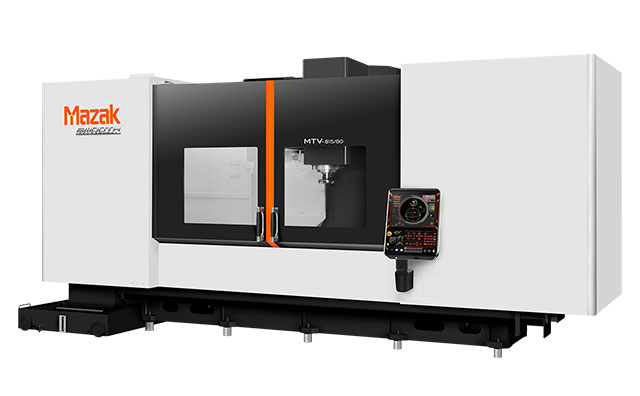

MTV-815/80

  • Y-axis Stroke
    810 mm
  • Tool Shank
    BT50
  • Standard Max. spindle speed
    6000 min-1 (rpm)
  • Table Size
    2240 mm × 810 mm
Specifications

MTV-815/120

  • Y-axis Stroke
    810 mm
  • Tool Shank
    BT50
  • Table Size
    3240 mm × 810 mm
  • Standard Max. spindle speed
    6000 min-1 (rpm)
Specifications
